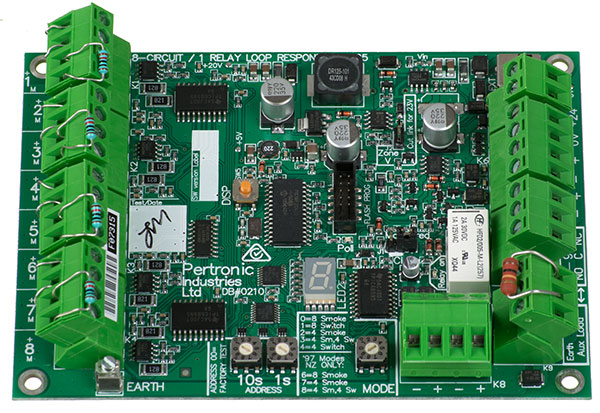

The new Multi-Function Loop Responder has been developed from our popular Loop Responder module.

The new module does everything the previous product could do. It is smaller and it has several new features.

The Multi-Function Loop Responder can handle a mix of inputs from conventional detection zones and switches. A board-mounted rotary switch provides a range of optional modes, including a “4- zone + 4-switch” option that allows four of the eight inputs to monitor conventional zones, while the other four inputs connect to isolated switch contacts. The rotary switch has positions for NZS 4512:2010 or NZS 4512:1997 zones.

The new product has a more versatile relay output with optional fault supervision using an end of line resistor. The output may be used for switching a 100 Volt audio evacuation circuit. It may also be configured to switch an isolated DC power supply.

The new module is backward-compatible with all Pertronic F100A and F120A analogue addressable fire alarm control panels.
