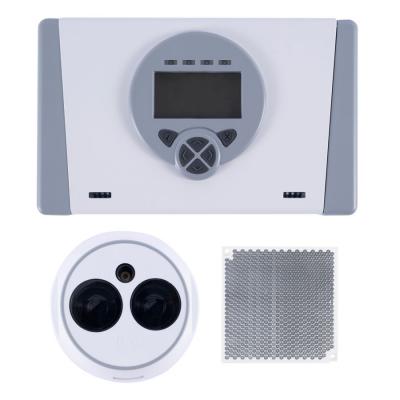

Built on Fireray One technology, the Fireray Hub Reflective monitors up to three detector heads with independent fire and fault signals for each detector.

With one-person installation the Fireray Hub Reflective system provides an ease of alignment, commissioning, configuring and maintenance of detectors through its auto-align feature.

Worldwide approvals include EN54-12:2015. FPANZ listing pending.

The Fireray One may be powered from an analogue loop without the need for an external power supply. Pertronic Industries has developed the Pertronic Loop Interface (FRLI), which in combination with the M210EA-CZR single unit module, allows the Fireray One to connect to an analogue addressable loop system.

If required, this FRLI / M210EA-CZR combination are separately ordered components assembled onsite.

The interface unit (FRLI) is shown pictured:



The M210EA-CZR module:





 Features:

• A standalone beam detector with all the benefits of Fireray Reflective beam detection
• Single point of wiring and commissioning
• Building Movement Tracking automatically compensates for natural building movement to continuously maintain alignment
• Integrated user interface - alignment mode switch, alignment directional buttons and configuration switches for setting the alarm response threshold
• Alignment status indication - 2 green LEDs and 1 yellow LED
• System status indication:
• Normal operation - Green LED flashing every 10 seconds
• Alarm condition - Red LED flashing every 5 seconds
• Fault condition - Yellow LED flashing every 10 seconds for obscuration or every 5 seconds for contamination
• Cleaning - Flat front face with enclosed optics. Cleaning the optics does not affect alignment

---
