Fire Alarm Control Panels

F220

Analogue addressable fire alarm control panel with seven-inch 800 x 480 pixel TFT LCD colour display and up to 20 loops

F100A

Analogue addressable fire alarm control panel with 2 to 4 loops and 2 x 40-character back-lit LCD display

F16e

Conventional fire alarm control panel with 8 to 32 zones. Available in NZS 4512:2010 and NZS 4512:1997 versions

F4-3

Four-zone conventional fire alarm control panel. Complies with NZS 4512:2010 requirements. Easily configured for NZS 4512:1997 compliance

F4 Type 5

Four-zone conventional fire alarm control panel for NZS 4512 Type 5 systems

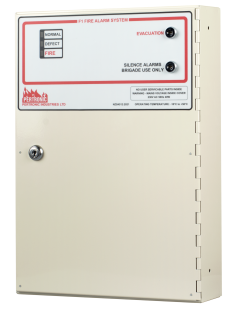

F1-3 Fire Alarm Control Panel

Single-zone conventional fire alarm control panel. Complies with NZS 4512:2010 requirements. Easily configured for NZS 4512:1997 compliance

FR1

Single-zone conventional fire alarm control panel.

F4 2-Wire

Four-zone conventional fire alarm control panel for 2--wire systems

F4AUXRLYV2 Relay Board

Provides additional (auxiliary) fire and fault (defect) relays for an F4 conventional fire alarm control panel

Networking

F220

Analogue addressable fire alarm control panel with seven-inch 800 x 480 pixel TFT LCD colour display and up to 20 loops

F100A

Analogue addressable fire alarm control panel with 2 to 4 loops and 2 x 40-character back-lit LCD display

Net2 Network

Networking system for F220 fire alarm control panels. Fault-tolerant. Adaptive messaging. Native interfaces for BMS (Modbus) and FireMap

NETCARD Network Card

Network card for interfacing F100 and F120 control panels, and other networkable devices, with a Pertronic F100/F120 Network System

NET2 Network Card

F220/Net2 Network node. Connects an F220 fire panel to Net2 Network Ring Circuit. May be configured as a BMS (Modbus) or FireMap interface

NET2-NCU Control Unit

Remote control and monitoring of an F220 Net2 network system. Programmable to control selected F220 fire panels or the entire network

NET2-EMM Mini-Mimic

Remote display for an F220 Net2 system. Programmable to monitor selected zones, F220 panels, or the entire network

NET2-AMM Mini-Mimic

Remote display of Alarm & Evacuate signals from F220 Net2 system. Programmable to monitor selected zones, F220 panels, or the entire network

FIBNET

Connects fibre-optic cable to the NET IN or NET OUT port of the Net2 Network Card.

Net2LayoutTool

A free software tool that automatically creates a data table representing the layout of an F220/Net2 network

SysLogCopier

Copies Linux OS diagnostic logs from F220 or Net2 card to USB stick. This tool is also available in Pertronic FireUtils® v7.00 (or later)

RS485REP Repeater

Provides bi-directional half-duplex communication between a Master RS-485 port and up to 5 electrically separate Slave ports

Software Applications

FireMap Graphics

Fire system management tool (GUI). In the event of an alarm, FireMap automatically displays a map showing the location of the alarm source

FireUtils v8.00.01.53

Free Windows-compatible programming and diagnostic application for F220/Net2 systems. Also supports F120A

F100A Utilities v5.14.04

F100A fire system programming and diagnostic application for F100A version 5.xx.xx

FireMap Pager

Messaging interface for Pertronic FireMap® graphic user interface. Initiates email or pager messages as defined in pre-configured rules

Network Utilities v2.14.08

Network system programming and diagnostic application for the Pertronic Network

F100A Utilities v3.24.4

F100A fire system programming and diagnostic application for F100A v3.xx.xx - v4.58

F100A Utilities v2.14

F100A fire system programming and diagnostic application for F100A v1.65 - v2.xx.xx. (Prior to introduction of Boolean cause-effect logic)

F100A TMS Utilities v2.1

F100A TMS fire system programming and diagnostic application for all F100A TMS versions

FireMap Gateway

Interface card for connecting Pertronic FireMap to a Pertronic analogue addressable fire panel via Ethernet

FAAST FLEX Aspire v3.10

Windows® app. for designing and specifying FAAST FLEX ASD systems including pipe network configuration. NOTE: Does not support VESDA systems

VESDA VSC v3.12

Management application for Xtralis fire and gas detection systems including VESDA and ICAM smoke and gas detectors and ancillary devices

VESDA Aspire Software v3.12

A Windows®-based application for designing and specifying VESDA aspirating smoke detection systems

FAAST LT PipeIQ v3.0.0

A Windows®-based application for designing and specifying FAAST aspirating smoke detection systems

Extinguishing Agent Release Systems

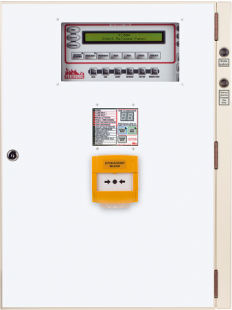

Extinguishing Agent Release Panels

Control panels for extinguishing agent release (fire suppression) systems including gas flood, water deluge, and foam deluge

ARC2 Agent Release Controller

The ARC2 is the central component of the Pertronic Extinguishing Agent Release System. It's designed to control gas flood equipment

ACS2 Agent Control Station

Pertronic agent release system must include one Agent Control Station. It's available in flush-mount or surface-mount configuration

LCS2 Local Control Station

Pertronic agent release system may include up to nine Local Control Stations. It's available in flush-mount or surface-mount configuration

Audio Visual Sign

Audio Visual Sign

Weatherproof Visual Warning Sign

Weatherproof Visual Warning Sign

Solenoid Interface

Interface units which allow allow analogue addressable control modules to activate and supervise a wide range of solenoids

AVSCM Countdown Module

Countdown Timer Module for Audio Visual Sign

Equipment Cabinets

Equipment Cabinets

Equipment Cabinets

BATCAB-550-NZ Battery Cabinet

Powder-coated steel battery cabinet. Accommodates batteries up to 38 Ah, Pertronic 24 Vdc power supply, & 24VCB control timer

Mimics, Repeaters & Interfaces

F220-FFM Mimic

Provides full remote control and monitoring of an F220 fire panel, for systems that need control at multiple locations.

F220-EMM Mini-Mimic

Remote display of system events from an F220 fire panel

F220-AMM Mini-Mimic

Remote display of Alarm and Evacuate signals from an F220 fire panel. For use by staff who are expected to respond to alarms.

NET2-NCU Control Unit

Remote control and monitoring of an F220 Net2 network system. Programmable to control selected F220 fire panels or the entire network

NET2-EMM Mini-Mimic

Remote display for an F220 Net2 system. Programmable to monitor selected zones, F220 panels, or the entire network

NET2-AMM Mini-Mimic

Remote display of Alarm & Evacuate signals from F220 Net2 system. Programmable to monitor selected zones, F220 panels, or the entire network

SPIB Text Interface

Interface for printers, pagers, nurse-call pagers, and other text systems. Automatically exports selected event data as a serial text stream

SPIB-MODBUS HLI Interface

Bi-directional Modbus interface for connecting a F220 FACP with one or more Modbus master devices such as a Building Management System (BMS)

SPIB-SGDAP Interface

Signal Generating Device (Advanced Protocol) for interfacing F100A, F220, and F120A fire panels with fire brigade alarm transmitters

FireMap Gateway

Interface card for connecting Pertronic FireMap to a Pertronic analogue addressable fire panel via Ethernet

F100AM-3 Mimic

F100A LCD Full Function Mimic

SPIB-LIOS Interface

Fibre-Optic Linear Heat Detector I/F: LIOS

F100A LCD Mini Mimics

LCD mini-mimic remote display for Pertronic F100A & F220 analogue addressable fire alarm control panels

SPIB-PWF8000 Interface

Fibre-Optic Linear Heat Detector I/F: Protectowire

F220 LCD & LED Combination Mimics

F220 combination mimic with LED display and F220 alarm mini-mimic. Available in three sizes. Front and rear service variants

F100A LCD & LED Combination Mimics

F100A combination mimic with LED display and integral mini-mimic. Available in three sizes. Front and rear service variants

Slimline LED Mimics & Cabinets

Slimline LED Mimics & Cabinets

RS485REP Repeater

Provides bi-directional half-duplex communication between a Master RS-485 port and up to 5 electrically separate Slave ports

L485 LED Address Controller

Controller for driving multiple LEDs, relays, or open collector outputs from a Pertronic fire alarm control panel's RS-485 bus

F4-RMAX Module

Interface for connecting a remote LED mimic to an F4 fire alarm control panel. With auxiliary fire and auxiliary fault (defect) relays

48WOC-IF Collector Board

RS485 to 48-Way Open Collector

LP Display Board

Light-Pipe LED Displays for F220, F120, F100, F16e and F4-RMAX

F100ZDRLY Relay Extender

8-Way Display Relay Extender Board

SGD7 Signal Gen

Digital Signal Generating Device for interfacing a fire alarm system with a fire brigade alarm transmitter

SGD8MD Multidrop

Two-Wire Multidrop Digital Signal Generating Device for interfacing a fire alarm system with a fire brigade alarm transmitter

BASGLX BACnet Gateway

BACnet Gateway

F100AMME Escutcheon

Escutcheon plate for flush-mounting the Pertronic LCD Mini-Mimic

NETCUN Control Unit

Control unit for the Pertronic F100/F120 Network System

CLC-MON-N9P Cable

Flexible RS-232 extension lead with DB9 male and DB9 female connectors and straight-through connection

Transmitters

SPIB-SGDAP Interface

Signal Generating Device (Advanced Protocol) for interfacing F100A, F220, and F120A fire panels with fire brigade alarm transmitters

SGD7 Signal Gen

Digital Signal Generating Device for interfacing a fire alarm system with a fire brigade alarm transmitter

SGD8MD Multidrop

Two-Wire Multidrop Digital Signal Generating Device for interfacing a fire alarm system with a fire brigade alarm transmitter

Accessories

MOXAK Ethernet Module Kit

Moxa serial to Ethernet interface kit with lead & null modem cable

F120TOF220 Upgrade KIT

Kit for upgrading an F120A system to an F220, including masterboard, keyboard+display, and brackets (excludes outer door)

In-Ceiling Detector Mount Kit

Kit of parts for mounting a point detector in a ceiling space.

TESTMAG Test Magnet

Telescoping detector test magnet and pickup tool with LED light

CPTSTPRWP Weatherproof

A tough, transparent, weatherproof polycarbonate shield and frame that fits over a manual call point

SPIB Text Interface

Interface for printers, pagers, nurse-call pagers, and other text systems. Automatically exports selected event data as a serial text stream

8SAAIB Module

8 Spur Analogue Addressable Isolator Board

SPIB-MODBUS HLI Interface

Bi-directional Modbus interface for connecting a F220 FACP with one or more Modbus master devices such as a Building Management System (BMS)

CPTST series

A tough, transparent, polycarbonate shield and frame that fits over a manual call point. Fitted with warning sounder

SPIB-SGDAP Interface

Signal Generating Device (Advanced Protocol) for interfacing F100A, F220, and F120A fire panels with fire brigade alarm transmitters

CPTSTPRHTR Call Point Stopper

A tough, transparent, polycarbonate shield and frame that fits over a manual call point, with built-in 230 Vac heater

CPBACKBOX Back Box

Back box for mounting a Pertronic manual call point on a flat surface

F4AUXRLYV2 Relay Board

Provides additional (auxiliary) fire and fault (defect) relays for an F4 conventional fire alarm control panel

CPPFPL Mounting Plate

Fascia panel for flush-mounting Pertronic Manual Call Points in place of large old manual call points (break-glass alarms)

SBB Mounting Box

Surface-mounting back boxes for L Series alarm (alerting) devices. Available in wall-mount and ceiling-mount variants.

DETREM Remote LED Indicator

Remote LED indicator

KACSGW MCP Window

Replacement windows for Manual Call Points, including Snapglaze and Break-Glass types

CPPTK MCP Test Key

Test key for Pertronic testable manual call points

8WCOMR Board

8 Way Common Relay Board

F4-RMAX Module

Interface for connecting a remote LED mimic to an F4 fire alarm control panel. With auxiliary fire and auxiliary fault (defect) relays

R2H24V Dual Relay

Dual Relay, Slugged with Isolate, 2 x 4 A C/O 24 V

EXTSPKRHOUS Speaker Housing

Vandal-resistant enclosure for horn speakers. Power-coated zintec.

RLY24V Relay

Auxiliary relay board with two form C (changeover) contacts rated 4 Amps, 30 Vdc (resistive). 24 Volt (nominal) coil

F100ZDRLY Relay Extender

8-Way Display Relay Extender Board

BASGLX BACnet Gateway

BACnet Gateway

CP500 Programmer

Handheld Programmer for Analogue Addressable Weatherproof Detectors

F100ZIPB Opto-Isolated IP Board

Eight-way opto-isolated input board for the Pertronic analogue addressable loop responder and multi-function loop responder

S300RPTU Programming Unit

300 Series - Remote Hand Held Programming Unit

ASD-F-SEN-SSE Sensor Head

Replacement smoke sensor for FAAST LT-200 series aspirating smoke detectors

CLC-MON-N9P Cable

Flexible RS-232 extension lead with DB9 male and DB9 female connectors and straight-through connection

ECO1000RTU Laser Test Unit

Remote laser test unit for System Sensor 300 Series detectors

Smoke Pen

Smoke Pen

SMOKEPR Refill Pack

Smoke Pen (6 Sticks)

Fire Door Holders

Floor-mount or wall-mount electromagnetic door holders for fire doors

FDHWM38-24V Door Holder

Wall-mount electromagnetic door holder for fire doors

FDHWM65-24V Door Holder

Wall-mount electromagnetic door holder for fire doors

Lo Profile Keeper

Low profile keeper plate for magnetic fire door holders

FDHFLBKT Bracket

Floor Mounting Bracket for FDHWM38-24V

FINDER12.21.0.024 Time Clock

Seven-day timer with single channel form C (change-over) relay output

MOXA-TCF-142 Series

MOXA serial to fire-optic converters for RS-232 and RS-485 circuits. Transmit up to 40 km over single-mode fibre-optic cable

Cable

Cable

NULLMOD9P Modem Cable

DB9 female to DB9 female 2-metre RS-232 null modem cable

DETSTI-9713 Detector Guard

Smoke Detector Guard

DETSTI-9609-SS Web Stopper

Stainless steel wire guard, high profile, octagonal shape

STI-8200 Guard

Smoke Detector Guard

STI-8100 Guard

Smoke Detector Guard

DETWGSLG Detector Guard

Detector Wire Guard (SMOKE)

DETWGS Detector Guard

Detector Wire Guard (SMOKE)

DETWGH Detector Guard

Detector Wire Guard

DETB Detector Bracket

A right-angle mounting bracket for Pertronic heat detectors

CCCI Interface

It's suitable for use with the F16e, F16, F4, or F1 panels, or with Loop Responders on analogue addressable systems.

Tools and Test Equipment

TESTMAG Test Magnet

Telescoping detector test magnet and pickup tool with LED light

OSP-002 OSID Laser Tool

This tool clips into the eyeball on OSI/OSID beam smoke detectors. It produces a red laser beam showing the detector beam's target

FISP Programmer

USB Flash In-System Programmer

CPPTK MCP Test Key

Test key for Pertronic testable manual call points

IMPEDMETER-MK2 Impedance Meter

Hand-held automatic audio impedance meter w. speaker load (wattage) display for 100 volt lines incl. fire & evacuation systems. Rechargeable

CP500 Programmer

Handheld Programmer for Analogue Addressable Weatherproof Detectors

Sensitivity Reader

This tool is to measure the sensitivity of System Sensor model 2151BPI conventional photo-electronic smoke detectors.

S300RPTU Programming Unit

300 Series - Remote Hand Held Programming Unit

ECO1000RTU Laser Test Unit

Remote laser test unit for System Sensor 300 Series detectors

Smoke Pen

Smoke Pen

SMOKEPR Refill Pack

Smoke Pen (6 Sticks)

SMTEST Detector Tester

Smoke detector aerosol tester (spray-can)
