The 5251RCPI detector is available only in ivory. White and black versions are not yet available.

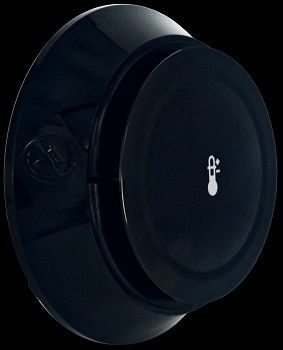

The C series analogue addressable ROR heat detector (5251RCPI) measures the temperature in its surroundings and continually reports this temperature measurement to the fire panel.

The panel will initiate an alarm if the temperature measurement goes above the threshold defined in the panel configuration. The heat detector also sends an alarm signal to the panel if the temperature increases rapidly. The rate of rise alarm is pre-configured in the detector.

A suitably configured fire panel will display the location of any detector which has triggered an alarm. The fire panel can also identify any active detector by lighting up two red LEDs on the detector housing.

The LEDs briefly light up (“blink”) when the detector is polled. The fire panel may be configured to disable LED blink.

The detector’s address on the analogue addressable loop circuit is easily configured using rotary address switches.

Features

• Analogue addressable (AA) communication with fire panel
• Temperature threshold configurable in the fire panel
• Rotary address switches. Range: 1 to 159
• Up to 159 detectors per loop (Pertronic F220)
• Up to 99 detectors per loop (Pertronic F100A)
• Dual LEDs for 360° visibility
• Optional remote LED indicator available
• Compatible with B501AUS, B501AP, and other System Sensor analogue addressable bases
• Compatible bases provide an optional anti-tamper feature
• SAI Global StandardsMark listed to AS 7240.5:2018, certificate SMHK25312
• Complies with NZS 4512:2021 s. 2.16.2
